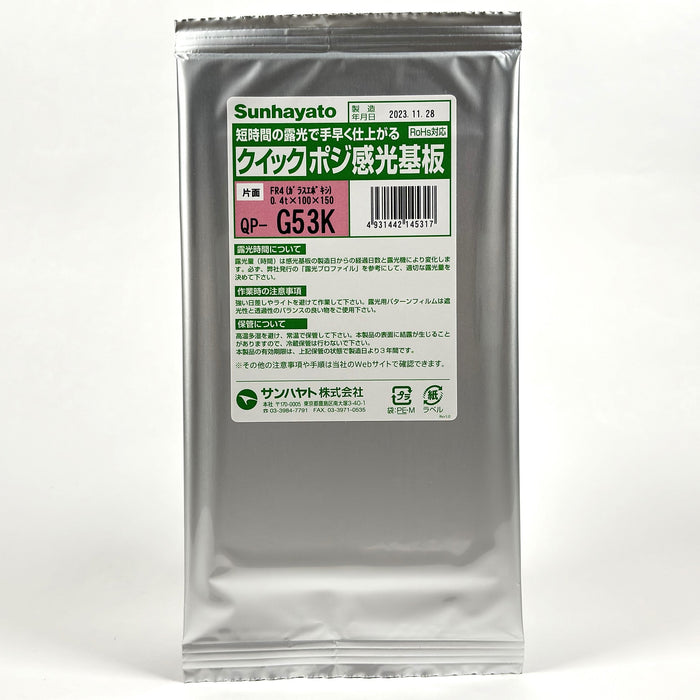

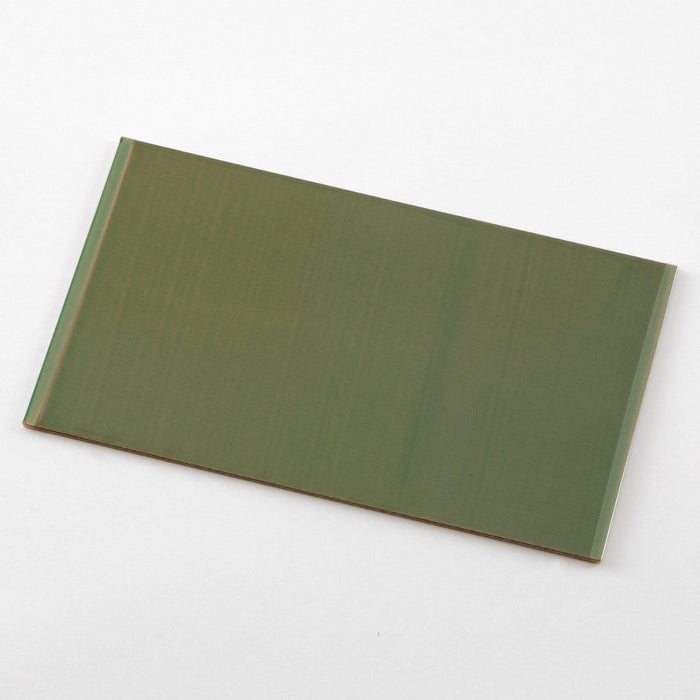

Quick Positive Photosensitive Substrate (Glass Epoxy Single-sided / 100 x 150 x 0.4t) (QP-G53K)
在庫数51
A quicker finish with a shorter exposure!
- Original PCB Production Tools
- Quick Positive Photosensitive Printed Boards
- RoHS compatible
- Glass Epoxy (FR-4)
- Single-sided
Prices have been revised from August 1st, 2025.
The exposure time has been about half that of conventional photosensitive substrates (NZ series). If you want to create a printed circuit board in small lots or make small adjustments during the prototype stage, you can easily create a printed circuit board by etching using a photosensitive board. The minimum pattern width and spacing that can be produced is 0.2mm each. The product is unopened and can be stored for a long period of three years from the date of manufacture. The exposure amount varies depending on the number of days since the photosensitive board's manufacturing date and the exposure machine. Download the technical documentation at the bottom of the page and use the exposure profile to determine the appropriate exposure amount.
Main specifications
- Model number
- QP-G53K
- RoHS Directive (10 Substances)
- correspondence
- Material types
- Glass Epoxy (FR-4)
- Double-sided / Single-sided
- Single-sided
- Body size
- 100 x 150 x 0.4t (mm)
- Quantity
- 1 piece
- Product size (approx. including packaging)
- 110 x 210 x 2mm
- Weight (approx. including packaging)
- 46g
- JAN Code
- 4931442145317
- country of origin
- Japan
- Copper Foil Thickness
- 35μm
- Note
- Avoid strong lights and lights when working. Do not store in a refrigerator (condensation may occur on the surface of the photosensitive substrate).
- Quality retention period
- 36 months from the date of manufacture
★Products are sold one by one. If you are considering this on a case-by-case basis, please refer to the following.
- Number of cases (boxes)
- 10 small boxes
- Small box size (approx.)
- 110 x 210 x 33mm
- Small box weight (approx.)
- 500g
