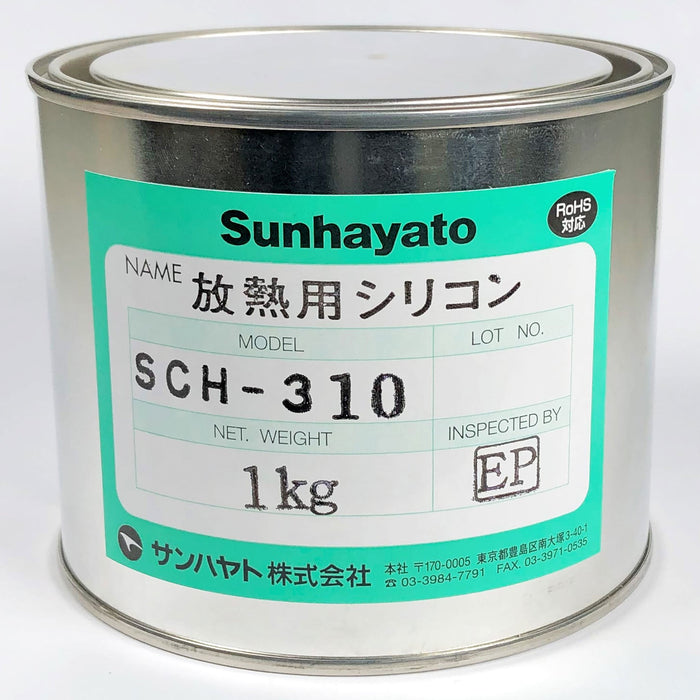

Heat-resistant silicone for heat dissipation (1 kg) (SCH-310)
受注生産
Original price
¥76,032
-
Original price
¥76,032
Original price
¥76,032
¥76,032
-
¥76,032
Current price
¥76,032
(Price including tax)
Heat dissipation silicone that can be used in an environment of 300°C
Prices have been revised from August 1st, 2025.
This silicone improves the thermal conductivity of the heat dissipation part, which can withstand the use of 300°C. Simply apply a thin layer between the CPU and the heat sink to improve thermal conductivity. This is a low-molecular siloxane reduced product (contact damage prevention product). There are five variations with different content.See variations of different content
Main specifications
- Model number
- SCH-310
- RoHS Directive (10 Substances)
- correspondence
- Quantity
- 1 can
- NET
- 1kg (427ml)
- Product size (approx. including packaging)
- Φ110 x 70mm
- Weight (approx. including packaging)
- 1.2kg
- JAN Code
- 4931442401635
- country of origin
- Japan
- component
- Silicone oil, filler
- exterior
- White grease-like
- Thermal conductivity
- 0.84W/mK
- Volume resistivity
- 1.5×1014Ω・cm
- Dielectric constant
- 5.0 (60Hz)
- Dielectric loss
- 0.005 (60Hz)
- Mixing level
- 330
- specific gravity
- 2.34
- Oil release level
- 2.8wt% (200℃, 24h)
- Reduced heating
- 0.2wt% (200℃, 24h)
- Small molecule siloxane
- 15ppm (D3~D10）
- Operating temperature range
- -30～300℃
- Hazardous materials and content under the Fire Service Act
- If the product is 3 ton or more, 1kg of designated combustible materials (synthetic resins)
- Heat resistant
- 300℃
