*While supplies last* 4mm Pitch PCB (42 × 116 × 1.6t) (AT-47D)

*While supplies last* 4mm Pitch PCB

• Universal Printed Circuits Boards
• Discrete Universal PCB
• RoHS Compliant
• Paper Phenolic (FR-1)
• Single-sided
• 4 mm

Prices were revised effective July 1, 2023.

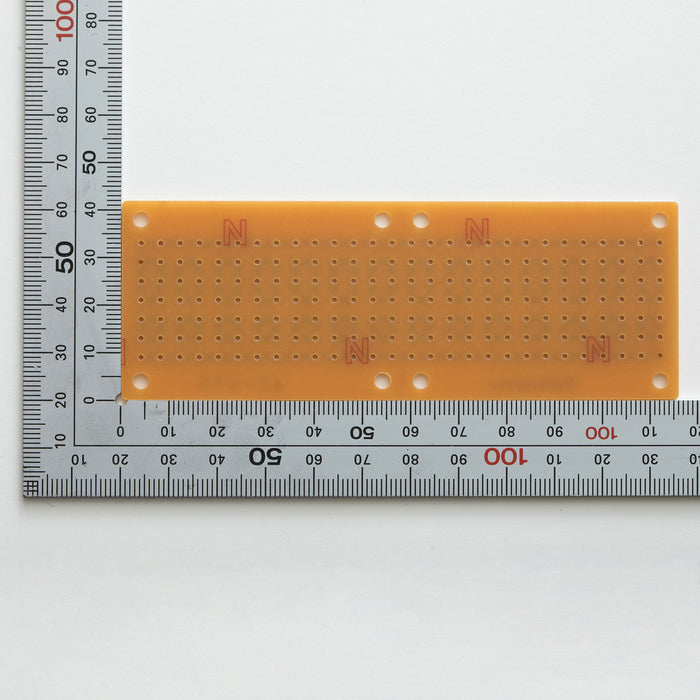

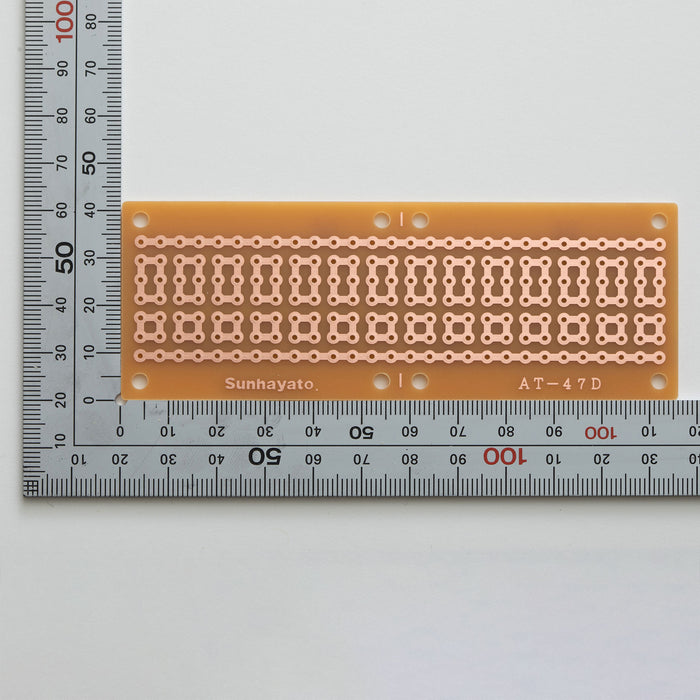

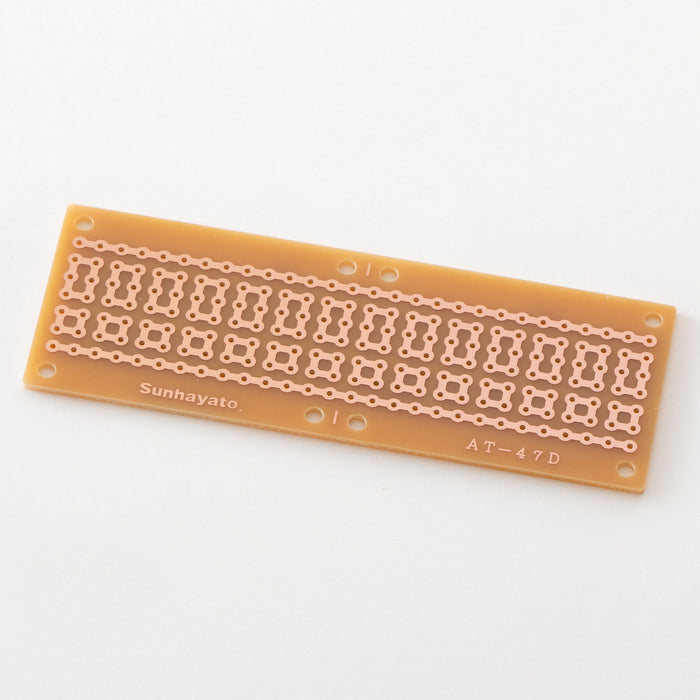

Single-sided・This is a 4mm Pitch interconnected dot-pattern circuit board made of paper-phenolic material.

Once this product is discontinued, please consider the dot-patterned AT-1S (43) or AT-40S (45).

Main Specifications

Model Number

AT-47D

RoHS Directive (10 Substances)

Compliant

Material types

Paper Phenolic (FR-1)

Double-sided / Single-sided

Single-sided

Pitch

4 mm

Unit Dimensions

42 × 116 × 1.6t (mm)

Quantity per pack

1 sheet

Product Dimensions (including packaging, approx.)

54 × 130 × 2 mm

Weight (including packaging, approx.)

10 g

JAN Code

4931442004713

Country of Origin

Japan

Hole Diameter

Φ1.0

Pattern/Land Shape

Connected dot pattern

Finishing Treatment

Flux

★Items are sold individually. If you are considering purchasing by case, please refer to the information below.

Quantity per Case (Box)

Small box: 10 sheets

Small Box Dimensions (approx.)

95 × 190 × 20 mm

Small box weight (approx.)

120 g

at47d

Documents Related to This Product

• *While supplies last* Detailed drawing of 4mm Pitch PCB (42×116×1.6t) (AT-47D)
• *While supplies last* RoHS Certificate for 4mm Pitch PCB (42×116×1.6t) (AT-47D)
